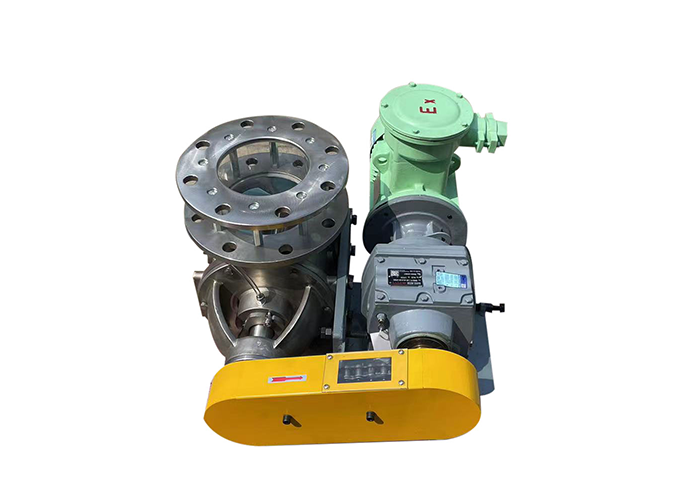

1L-200L/rev Stainless Steel Air Water Oil Gas Rotary Valve for
Precise Flow Control
type |
Volume/rotation | | | temperature | weight | Installationdimension |
| (KW) | R/min | (℃) | KG | Φ A | Φ B | Φ C | A1 | B1 | C1 | H | E | n-Φ
(mn) |
| 2L | 2L/r | 0.75 | 40 | ≤80 | 40 | 240 | 200 | 150 | 240*240 | 200 | 150*150 | 240 | 500 | 8-Φ11 |
| 4L | 4L/r | 0.75 | 40 | ≤80 | 60 | 280 | 240 | 180 | 270*270 | 230 | 180*180 | 280 | 530 | 8-Φ11 |
| 6L | 6L/r | 0.75 | 40 | ≤80 | 75 | 300 | 260 | 200 | 290*290 | 250 | 200*200 | 300 | 550 | 8-Φ11 |
| 8L | 8L/r | 0.75 | 40 | ≤80 | 80 | 320 | 280 | 220 | 310*310 | 270 | 220*220 | 320 | 580 | 8-Φ11 |
| 10L | 10L/r | 1.1 | 40 | ≤80 | 100 | 340 | 300 | 240 | 330*330 | 290 | 240*240 | 340 | 600 | 8-Φ13 |
| 12L | 12L/r | 1.1 | 40 | ≤80 | 115 | 360 | 320 | 260 | 350*350 | 310 | 260*260 | 360 | 620 | 8-Φ17 |
| 14L | 14L/r | 1.1 | 40 | ≤80 | 130 | 380 | 340 | 280 | 370*370 | 330 | 280*280 | 380 | 640 | 8-Φ17 |
| 16L | 16L/r | 1.5 | 40 | ≤80 | 150 | 400 | 360 | 300 | 400*400 | 350 | 300*300 | 400 | 670 | 8-Φ17 |
| 18L | 18L/r | 1.5 | 40 | ≤80 | 165 | 420 | 380 | 320 | 420*420 | 370 | 320*320 | 420 | 690 | 8-Φ17 |
| 20L | 20L/r | 1.5 | 40 | ≤80 | 180 | 440 | 400 | 340 | 440*440 | 390 | 340*340 | 440 | 710 | 8-Φ17 |
| 26L | 26L/r | 2.2 | 24 | ≤80 | 230 | 500 | 460 | 400 | 510*510 | 450 | 400*400 | 520 | 770 | 12-Φ17 |
| 30L | 30L/r | 3 | 24 | ≤80 | 280 | 560 | 500 | 440 | 550*550 | 495 | 440*440 | 550 | 820 | 12-Φ17 |
| 40L | 40L/r | 3 | 24 | ≤80 | 320 | 620 | 558 | 500 | 620*620 | 558 | 500*500 | 620 | 950 | 12-Φ17 |
| 50L | 50L/r | 3 | 24 | ≤80 | 380 | 650 | 600 | 540 | 650*650 | 600 | 540*540 | 650 | 990 | 12-Φ17 |
Product Description:
The size of the Stainless Steel Rotary Valve can be customized to
meet the specific needs of your application. This makes it an ideal
choice for a wide range of industries. With a volume range of
1L-200L/rev, this valve is capable of handling a range of materials
and can be used in a variety of settings.
The Stainless Steel Rotary Valve is equipped with a vane actuator,
which allows it to operate smoothly and efficiently. This actuator
ensures that the valve opens and closes smoothly, without any
jarring or jerking movements. This makes the valve ideal for use in
applications where precision is important.
In addition to the vane actuator, the Stainless Steel Rotary Valve
can also be equipped with an electric rotary actuator. This allows
the valve to be automated, making it ideal for use in applications
where the valve needs to be opened and closed on a regular basis.
The electric rotary actuator ensures that the valve operates
smoothly and efficiently, without any human intervention.
The Stainless Steel Rotary Valve is also suitable for use as a
rotary airlock feeder. This makes it an ideal choice for use in
industries where materials need to be transferred from one location
to another. The valve can be used to transfer materials from one
machine to another, or from one process to another. This makes it
an ideal choice for a wide range of industries, including
manufacturing, food processing, and pharmaceuticals.
Features:
- Product Name: Stainless Steel Rotary Valve
- Height: 220-900mm
- Frequency: 50/60Hz
- Media: Air, Water, Oil, Gas
- Application: Industrial
- Packaging: Standard Export Package
- Features:
- Equipped with vane actuator for precision control
- Rotary actuator for smooth operation
- Can handle various media including air, water, oil, and gas
- Designed for industrial applications
- Standard export packaging for safe transportation
Technical Parameters:
| Product Attribute | Value |
| Product Name | Stainless Steel Rotary Valve |
| Frequency | 50/60Hz |
| Size | Customized |
| Media | Air, Water, Oil, Gas |
| Packaging | Standard Export Package |
| Height | 220-900mm |
| Volume | 1L-200L/rev |
| Application | Industrial |
| Product Type | Rotary Airlock Valve |
| Actuator Type | Rotary Actuator |
Applications:
The Stainless Steel Rotary Valve is capable of handling volumes
ranging from 1L-200L/rev. The size of the product is customizable
to fit different applications and environments. The valve is
equipped with a rotary actuator, which allows for smooth and
efficient material transfer.
The Stainless Steel Rotary Valve is ideal for various application
occasions and scenarios. Here are some of the most common ones:
- Chemical Industry: The valve is suitable for transferring bulk materials such as PVC,
polyethylene, and other chemicals. The valve's stainless steel
construction ensures that it can withstand corrosive chemicals
without wearing out.
- Food Industry: The valve is ideal for transferring food products such as grains,
sugar, and flour. The stainless steel material is food grade and
does not contaminate the food products.
- Pharmaceutical Industry: The valve is suitable for transferring pharmaceutical products
such as capsules, tablets, and powders. The valve's smooth
operation ensures that the products do not get damaged during
transfer.
- Plastic Industry: The valve is ideal for transferring plastic pellets and powders.
The valve's stainless steel construction ensures that it can
withstand the abrasive nature of plastic materials.
The Stainless Steel Rotary Valve is available in both electric and
manual rotary actuators. The electric rotary actuator allows for
automatic and remote operation of the valve, making it ideal for
industries that require efficient and fast material transfer. The
product comes in a standard export package, ensuring that it is
well-protected during transportation.
Overall, the Stainless Steel Rotary Valve from ChangHong XiangLong
is an excellent product for various industries that require the
transfer of bulk materials. Its customizable size, efficient rotary
actuator, and ability to handle different media make it a top
choice for many industries.
Customization:
Support and Services:
The Stainless Steel Rotary Valve product has the following
technical support and services:
- Installation guidance and support
- Operation and maintenance training
- Technical documentation and manuals
- 24/7 technical support hotline
- On-site repair and maintenance services
- Replacement parts and components
Packing and Shipping:
Product Name: Stainless Steel Rotary Valve
Dimensions: 10 cm x 10 cm x 10 cm
Weight: 1 kg
Material: Stainless steel
Packaging: The valve will be packed securely in a cardboard box
with appropriate cushioning to ensure it arrives in perfect
condition.
Shipping: The product will be shipped via standard ground shipping
and should arrive within 5-7 business days. Expedited shipping
options are available at an additional cost.
FAQ:
Q: What is the brand name of this rotary valve?
A: The brand name of this rotary valve is ChangHong XiangLong.
Q: Where is this rotary valve made?
A: This rotary valve is made in China, the place of origin.
Q: What is the material used to make this rotary valve?
A: This rotary valve is made of stainless steel, which makes it
highly durable and resistant to corrosion.
Q: What is the operating temperature range of this rotary valve?
A: The operating temperature range of this rotary valve is -20°C to
200°C.
Q: What is the maximum pressure rating for this rotary valve?
A: The maximum pressure rating for this rotary valve is 1.6 MPa.
