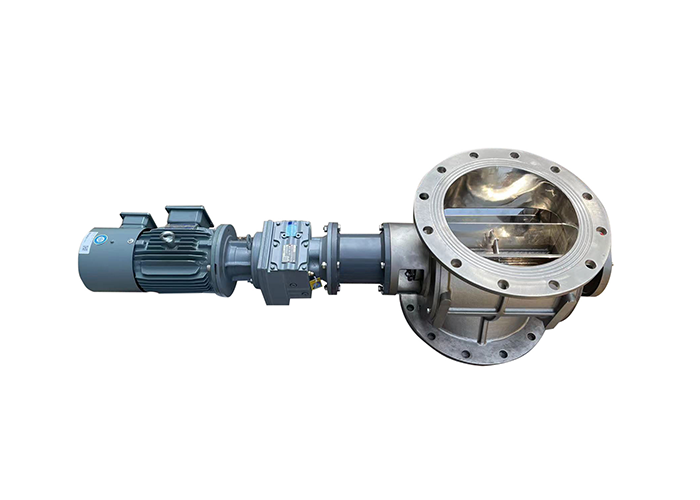

Heavy Duty 1L-200L/rev Stainless Steel Rotary Valve for Multiple
Media Applications
type |
L/Rev | Stucural dimensions(mn) |
r/min |
(KW) |
| ΦA | ΦB | ΦC | E | F | M | N | H | n-Φd |
| BZGFWF-80 | 1L | 80 | 160 | 200 | 180 | 500 | | | 220 | 4-Φ18 | 1-50 | 0.2- |
| BZGFWF-100 | 2L | 100 | 180 | 220 | 200 | 520 | | | 250 | 8-Φ18 | 1-50 | 0.4- |
| BZGFWF-150 | 2L | 150 | 240 | 285 | 210 | 520 | | | 240 | 8-Φ22 | 1-50 | 0.4- |
| BZGFWF-150 | 4L | 150 | 240 | 285 | 210 | 550 | 580 | 540 | 320 | 8-Φ22 | 1-50 | 0.75- |
| BZGFWF-200 | 6L | 200 | 295 | 340 | 240 | 560 | 600 | 580 | 300 | 8-Φ22 | 10-50 | 0.75- |
| BZGFWF-200 | 8L | 200 | 295 | 340 | 240 | 590 | 620 | 590 | 370 | 8-Φ22 | 10-50 | 1.1- |
| BZGFWF-250 | 10L | 250 | 350 | 395 | 260 | 610 | 650 | 620 | 360 | 12-Φ22 | 10-50 | 1.1- |
| BZGFWF-250 | 12L | 250 | 350 | 395 | 270 | 620 | 670 | 630 | 400 | 12-Φ22 | 10-50 | 1.5- |
| BZGFWF-250 | 16L | 250 | 350 | 395 | 270 | 630 | 680 | 640 | 430 | 12-Φ22 | 10-50 | 1.5- |
| BZGFWF-300 | 16L | 300 | 350 | 395 | 270 | 630 | 700 | 660 | 400 | 12-Φ22 | 10-50 | 1.5- |
| BZGFWF-300 | 20L | 300 | 350 | 395 | 280 | 640 | 710 | 670 | 440 | 12-Φ22 | 10-32 | 1.5- |
| BZGFWF-300 | 25L | 300 | 400 | 445 | 300 | 660 | 720 | 680 | 490 | 12-Φ22 | 10-32 | 1.5- |
| BZGFWF-350 | 40L | 350 | 460 | 505 | 330 | 700 | 780 | 730 | 550 | 16-Φ22 | 10-32 | 2.2- |
| BZGFWF-400 | 60L | 400 | 515 | 565 | 360 | 740 | 840 | 780 | 600 | 16-Φ24 | 10-24 | 2.2- |
| BZGFWF-450 | 80L | 450 | 565 | 615 | 400 | 770 | 900 | 830 | 660 | 20-Φ24 | 10-24 | 2.2- |
| BZGFWF-500 | 110L | 500 | 620 | 670 | 430 | 800 | 1000 | 900 | 720 | 20-Φ24 | 10-24 | 3- |
| BZGFWF-600 | 150L | 600 | 725 | 780 | 480 | 850 | 1100 | 980 | 780 | 20-Φ30 | 10-24 | 4- |
| BZGFWF-700 | 200L | 700 | 840 | 895 | 530 | 900 | 1200 | 1080 | 900 | 24-Φ30 | 10-24 | 4- |
Product Description:
The Stainless Steel Rotary Valve is designed to handle a variety of
media including air, water, oil, and gas. Its durable stainless
steel construction ensures longevity and resistance to corrosion,
making it a reliable choice for industrial applications.
Our Rotary Valve is equipped with a rotating airlock feeder that
ensures a continuous flow of materials without any blockages. Its
unique design allows for precision control of material flow, making
it an ideal choice for industries such as cement, food processing,
and agriculture.
The Stainless Steel Rotary Valve is packaged in a standard export
package, ensuring that it arrives at your facility in pristine
condition. With a range of customizable sizes available, our valve
can be tailored to meet the specific needs of your operation.
Overall, the Stainless Steel Rotary Valve is an essential tool for
any industrial operation that requires reliable and precise
material handling. Its durable construction, customizable sizing,
and ability to handle a variety of media make it an ideal choice
for any industry.
Features:
- Product Name: Stainless Steel Rotary Valve
- Volume: 1L-200L/rev
- Frequency: 50/60Hz
- Packaging: Standard Export Package
- Media: Air, Water, Oil, Gas
- Size: Customized
- Can be used as a rotary airlock feeder
- Can be operated with an electric rotary actuator
- Can be used as a rotary feeder
Technical Parameters:
| Product Attribute | Technical Parameter |
| Product Name | Stainless Steel Rotary Valve |
| Frequency | 50/60Hz |
| Size | Customized |
| Packaging | Standard Export Package |
| Media | Air, Water, Oil, Gas |
| Height | 220-900mm |
| Volume | 1L-200L/rev |
| Application | Industrial |
| Product Type | Rotary Airlock Valve |
| Other Names | Rotating Valve, Electric Rotary Actuator |
Applications:
One of the most common applications for this valve is as a rotary
feeder. Its ability to control the flow of materials makes it ideal
for use in the food and pharmaceutical industries. It can be used
to transfer products from one area to another, as well as to
control the rate at which they are dispensed.
Another common application for the stainless steel rotary valve is
as a rotary airlock valve. This valve is used to regulate the flow
of air into and out of a system. It is commonly used in dust
collection systems, pneumatic conveying systems, and industrial
vacuum systems. The valve's ability to create a tight seal makes it
ideal for use in these types of applications.
The valve is also often used in conjunction with a rotary actuator.
This allows for precise control of the valve's position, making it
ideal for use in process control applications. The actuator can be
programmed to move the valve to specific positions based on the
needs of the system.
The stainless steel rotary valve's versatility makes it ideal for
use in a wide range of industries, including chemical,
pharmaceutical, food and beverage, and oil and gas. It can be used
to control the flow of materials in a variety of scenarios, from
simple material transfer to complex process control applications.
The valve is made in China and comes with standard export
packaging. It operates at a frequency of 50/60Hz, and can be
adjusted to heights ranging from 220-900mm. Its ability to handle a
variety of media, combined with its customizable size, make it a
valuable addition to any industrial system.
Customization:
We offer customized sizing to fit your unique application needs,
ensuring optimal performance. Additionally, our standard export
packaging ensures that your valve is protected during transport.
Choose from vane actuator, rotary actuator, or rotary feeder
options to enhance the functionality of your valve. Our team of
experts will work with you to design a valve that meets your
specific requirements.
Support and Services:
The Stainless Steel Rotary Valve product technical support and
services include:
- Expert guidance on installation and operation of the valve
- Assistance with troubleshooting and identifying any issues
- Recommendations on maintenance and cleaning procedures
- Access to replacement parts and accessories
- Training on the proper use and care of the valve
Our team of experienced technicians and engineers is dedicated to
providing top-notch support and services to ensure the optimal
performance and longevity of your Stainless Steel Rotary Valve.
Packing and Shipping:
Product Packaging:
- The stainless steel rotary valve product is securely packaged in a
sturdy cardboard box.
- The product is wrapped in bubble wrap to prevent any scratches or
damage during transportation.
- Inside the box, there are foam inserts to keep the product in place
and prevent any movement during shipping.
Shipping:
- The product will be shipped via a reputable courier service to
ensure timely and safe delivery.
- Customers will receive a tracking number to monitor the progress of
their shipment.
- Shipping times may vary depending on the destination, but we strive
to deliver products as quickly as possible.
FAQ:
Q: What is the brand name of this Rotary Valve product?
A: The brand name of this product is ChangHong XiangLong.
Q: Where is the place of origin of this Rotary Valve product?
A: This product is made in CHINA.
Q: What is the material used to make this Rotary Valve?
A: The material used to make this Rotary Valve is stainless steel.
Q: What is the maximum operating temperature for this Rotary Valve?
A: The maximum operating temperature for this Rotary Valve is
400°C.
Q: What is the maximum pressure rating for this Rotary Valve?
A: The maximum pressure rating for this Rotary Valve is 10 bar.
